046701.25NRHF

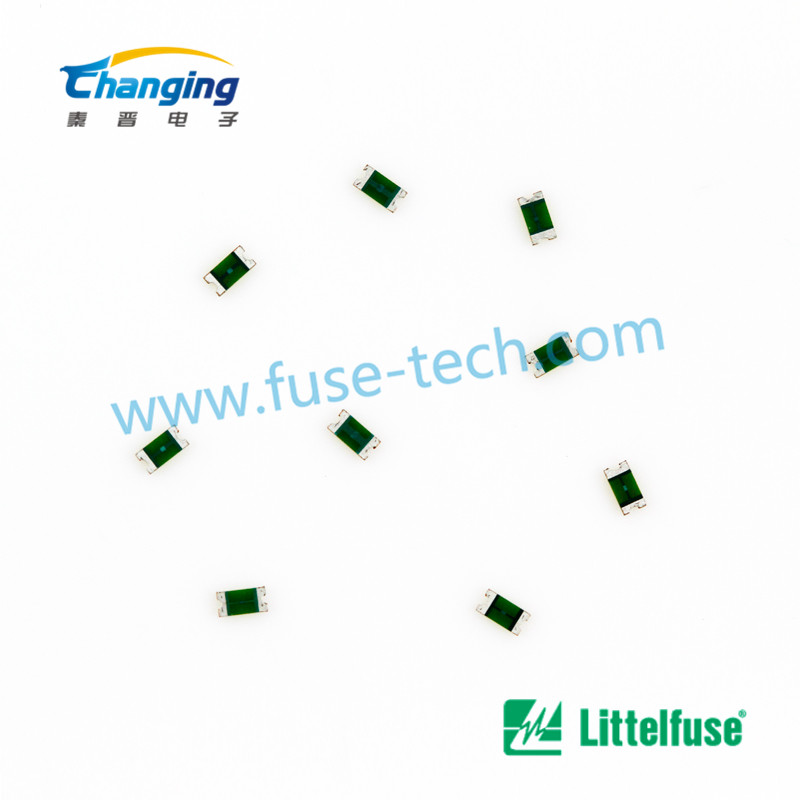

Littelfuse力特046701.25NRHF Nano2 SMF保險絲是一款超小型、方形表面貼裝的保險絲，也可連同表面貼裝保險絲座供貨。 功能與特色: 特快熔斷、尺寸小巧 產品額定電流范圍廣（62mA至15A） 工作溫度范圍廣泛、低溫降額、符合RoHS標準、無鹵素。
| 型號 |
Ampere Rating (A) |
Amp Code |
Max Voltage Rating(V) |
Interrupting Rating |
Nominal Code Resistance (Ohms) |
Nominal Melting I2t(A2sec) |
NomVoltage Drop(mV) |
NomPower Dissipation (W) |
Data Sheet |
|---|---|---|---|---|---|---|---|---|---|
| 046703.5NRHF | 3.5 | 3.5 | 32 | 35A @32V AC/DC | 0.015 | 0.4306 | 74.25 | 0.2599 |
 |
| 0467005.NRHF | 5 | 5 | 32 | 35A @32V AC/DC | 0.009 | 0.9 | 72.71 | 0.3635 |
|
| 046701.75NRHF | 1.75 | 1.75 | 32 | 35A @32V AC/DC | 0.032 | 0.0903 | 78.75 | 0.1378 |
|
| 046701.25NRHF | 1.25 | 1.25 | 32 | 35A @32V AC/DC | 0.053 | 0.0518 | 84.32 | 0.1054 |
|
| 0467004.NRHF | 4 | 4 | 32 | 35A @32V AC/DC | 0.013 | 0.576 | 73.72 | 0.2949 |
|
| 0467003.NRHF | 3 | 3 | 32 | 35A @32V AC/DC | 0.018 | 0.2403 | 75.04 | 0.2251 |
|
| 046702.5NRHF | 2.5 | 2.5 | 32 | 35A @32V AC/DC | 0.022 | 0.144 | 76.1 | 0.1903 |
|
| 0467002.NRHF | 2 | 2 | 32 | 35A @32V AC/DC | 0.03 | 0.1103 | 78.22 | 0.1564 |
|
| 046701.5NRHF | 1.5 | 1.5 | 32 | 35A @32V AC/DC | 0.041 | 0.0766 | 81.14 | 0.1217 |
|
| 0467001.NRHF | 1 | 1 | 32 | 50A @32V AC/DC | 0.071 | 0.0212 | 89.1 | 0.0891 |
|
| 0467.750NRHF | 0.75 | 0.75 | 32 | 50A @32V AC/DC | 0.117 | 0.0171 | 107.33 | 0.0805 |
|
| 0467.500NRHF | 0.5 | 0.5 | 32 | 50A @32V AC/DC | 0.187 | 0.0087 | 115.71 | 0.0579 |
|
| 0467.250NRHF | 0.25 | 0.25 | 32 | 50A@32VAC/DC | 0.545 | 0.003 | 158.56 | 0.0396 |
|
| 0467.375NRHF | 0.375 | 0.375 | 32 | 50A@32VAC/DC | 0.29 | 0.0053 | 128.03 | 0.048 |
|
