3921200

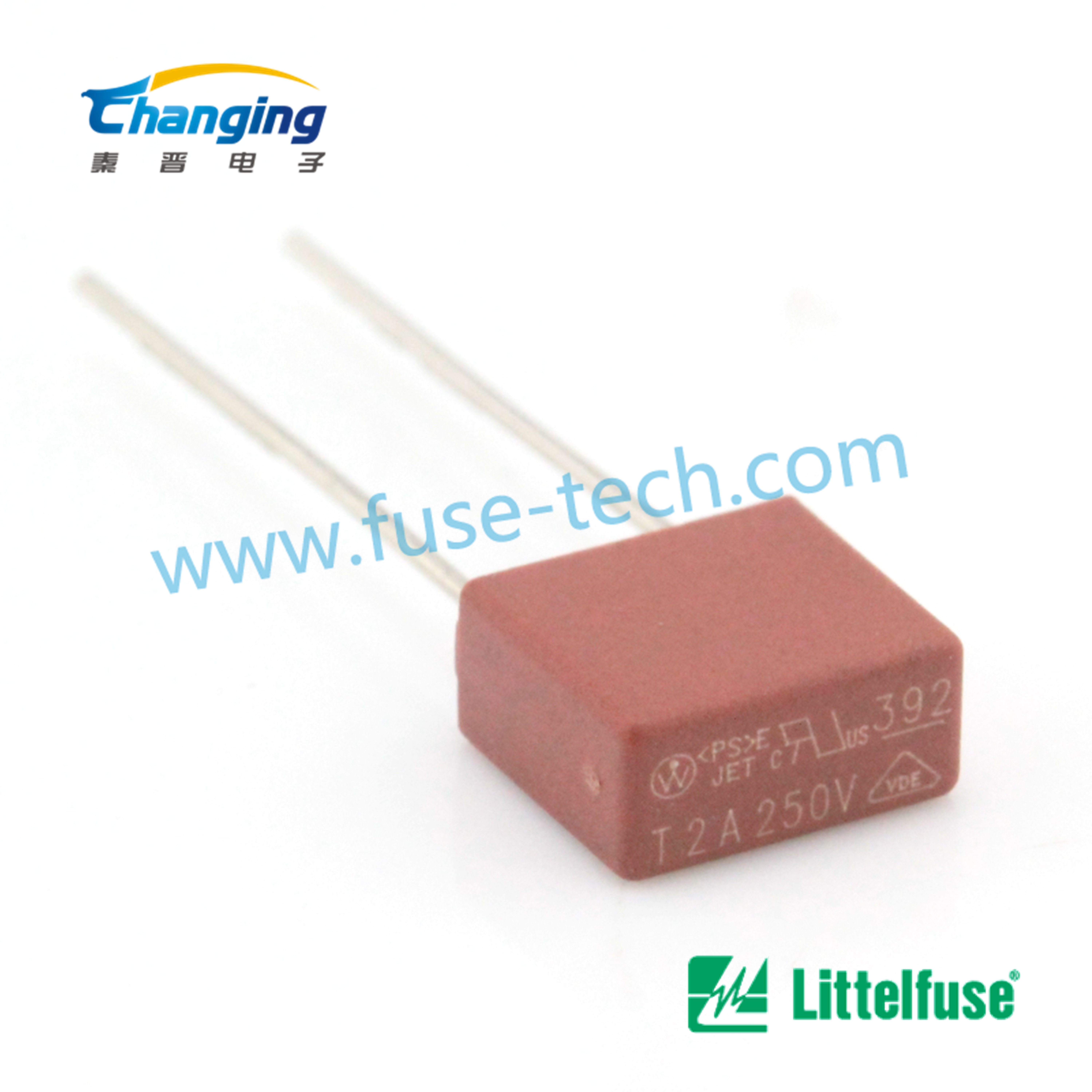

力特3921200微型保險絲 無鉛 降低對PCB板的空間要求 可直接軟焊或插入 獲國際認證 低內阻 防電擊外殼 抗振 無鹵素
| 型號 | AmpCode |
Rated Current |
Voltage Rating |
Bearking Capacity |
VoltageDrop 1.0×1N max.(mV) |
PowerDissipation 1.5×1Nmax.(mW) |
MeitingIntegral 10×1Nmin.（A2s) |
Data Sheet |
|---|---|---|---|---|---|---|---|---|
| 3921630 | 6.30A | 1630 | 250V | 63A/250VAC | 65 | 1200 | 126.00 |
 |
| 3921500 | 5.00A | 1500 | 250V | 50A/250VAC | 70 | 1000 | 90.00 |
|
| 3921400 | 4.00A | 1400 | 250V | 40A/250VAC | 75 | 1200 | 100.00 |
|
| 3921315 | 3.15A | 1315 | 250V | 32A/250VAC | 80 | 1100 | 55.00 |
|
| 3921250 | 2.50A | 1250 | 250V | 25A/250VAC | 85 | 750 | 32.00 |
|
| 3921200 | 2.00A | 1200 | 250V | 25A/250VAC | 90 | 700 | 21.00 |
|
| 3921125 | 1.25A | 1125 | 250V | 25A/250VAC | 100 | 500 | 9.75 |
|
| 3921100 | 1.00A | 1100 | 250V | 25A/250VAC | 115 | 400 | 5.80 |
|
| 3920800 | 800mA | 0800 | 250V | 25A/250VAC | 110 | 280 | 3.80 |
|
| 3920225 | 0225 | 225mA | 250V | 50A/250VAC | 214 | 145 | 0.443 |
|
