A600-500

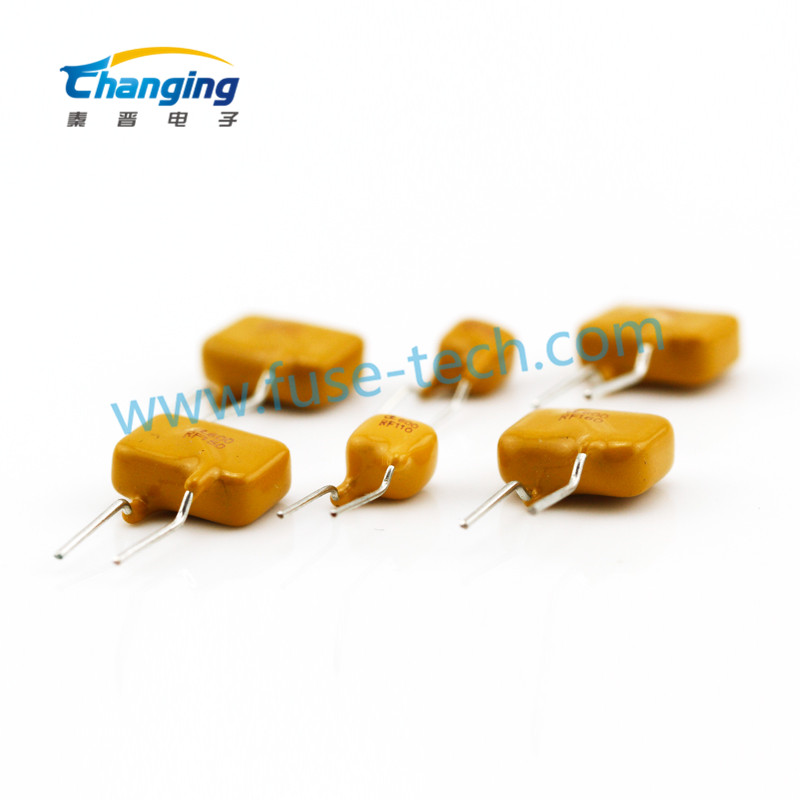

集電通A600-500 自恢復保險絲專為程控交換機、配線架設計生產的過流保護器件，同時還可用于變壓器、安防設備、燈具、鎮流器、儀表、電話線路等領域。
| 型號 | Marking |
Ihold (A) |
Itrip (A) |
Vmax Vint/Vop (V) |
Imax (A) |
Pdtyp. (W) |
Trip current (A) |
Trip time (S) |
Rimin (Ω) |
R1max (Ω) |
Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A600-030 | α600RF030 | 0.03 | 0.06 | 600/60 | 3.0 | 1.0 | 0.50 | 5.0 | 90.0 | 350.0 |
 |
| A600-050 | α600RF050 | 0.05 | 0.10 | 600/60 | 3.0 | 1.0 | 0.50 | 5.0 | 15.0 | 350.0 |
|
| A600-110 | α600RF110 | 0.11 | 0.22 | 600/60 | 3.0 | 1.5 | 0.55 | 5.0 | 6.0 | 30.0 |
|
| A600-150 | α600RF150 | 0.15 | 0.30 | 600/60 | 3.0 | 1.5 | 0.75 | 5.0 | 5.0 | 22.0 |
|
| A600-160 | α600RF160 | 0.16 | 0.32 | 600/60 | 3.0 | 1.5 | 0.8 | 5.0 | 4.0 | 18.0 |
|
| A600-200 | α600RF200 | 0.20 | 0.40 | 600/60 | 3.0 | 1.5 | 1.0 | 10.0 | 5.0 | 24.0 |
|
| A600-400 | α600RF400 | 0.40 | 0.80 | 600/60 | 3.0 | 2.5 | 2.0 | 15.0 | 2.8 | 7.0 |
|
| A600-500 | α600RF500 | 0.5 | 1.00 | 600/60 | 3.0 | 5.0 | 2.5 | 15.0 | 2.5 | 7.0 |
|
